4kw Automatic Duplex Submersible Pump Controller for Pressure Pump Control

Basic Info.

Model NO.	Y2S-4KW
Condition	New
Customized	Customized
Material	ABS
Installation	Wall-Mounted
Pump Control	Double Pump Control
Protection	Pump Stalled/Dry Run/Phase Loss Protection
Control Way	Float Switch/Probe/Pressure Switch/Pressure Gauge
Voltage Protection Range	176-264
Pump Power	4kw
Phase	Single-Phase
Input Voltage	220-240VAC
Transport Package	Pieces

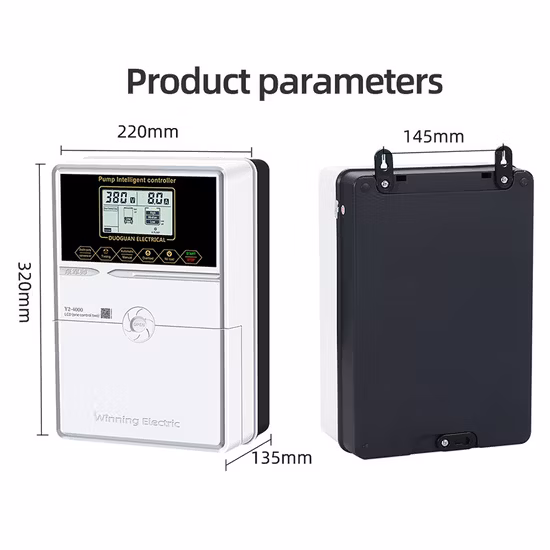

Specification	331*220*135mm
Trademark	Pump Sergeant
Origin	China
HS Code	90328990
Production Capacity	10000PC/Month

Product Description

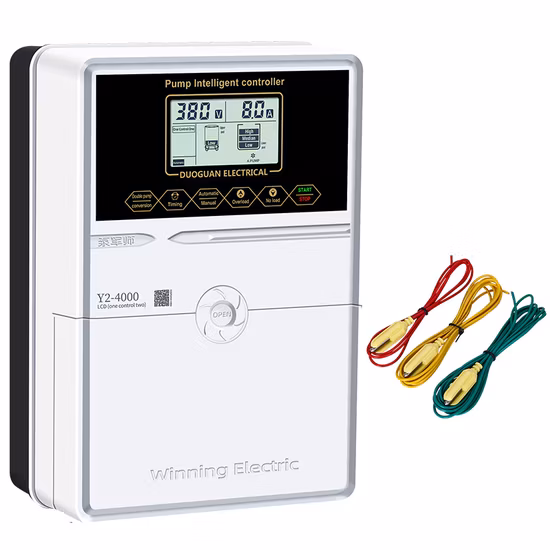

1.Description of Automatic Duplex Submersible Pump Controller
The automatic pump controller is an intelligent and economical system designed for multi pump and motors.Pump Controller that start and stop pumps and devices that allow operator monitoring and control. Suitable for Surface pump,Sewage Pump,Booster pump,Submersible pumps and etc.

2.Typical Applications of Automatic Duplex Submersible Pump Controller

• Agricultural irrigation/ pumping
• Waste water treatment
• Pressure Booster Systems
• Drainage System
• Flood Control
• Water Tanks/Wells
• Cooling Towers
• Fishing Boat

Specifications of Automatic Duplex Submersible Pump Controller

Type	Y2S
Model	Y2S-4KW	Y2S-7.5KW	Y2S-11KW	Y2S-15KW
Rated Power	0.75-4KW	1.1-7.5KW	1.1-11KW	2.2-15KW
Rated Input Voltage	230V±10% , 50Hz / 60Hz
Qty.of Controlled Pumps	Double pumps
Display	LCD display
Signal Transmission Mode	Float switch Probe Pressure switch Electric contact pressure gauge
Water Level Indication	High/Middle/Low
Max.Control Distance	≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range	176-264V(adjustable)
Protections	Pump stalled protectionDry run protectionOver-load protectionUnder-voltage protectionOver-voltage protectionOpen phase protectionShort circuit protection
Main Functions	Time settingFault detectionAnti-rust inspectionDual pump rotationAutomatic restart after power recovery
Working temperature	-25ºC-- +55ºC
Working humidity	20%--90%RH, no drips concreted
Install position	Wall mounted

1)How to convert HP into KW ?The conversion formula as :1HP=0.74KW
for example: 3HP=3x0.74KW=2.22KW
2)How to choose the power of your pump controller?Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose 7.5KW.For Submersible pumps which used in the deep well,please check with us first .3)Can I have the samples of your pump controller ?Yes, we can send you the pump controller samples for your testing .4)Can you provide OEM or ODM ?Yes,we can make the ordes according to your detailed request.5)what is your delivery time?It takes 3-5 days for sample orders,and 15-20 days for orders.
