PLC Input Module Sr

Basic Info.

Model NO.	SR-20ETD
Signal	Continuous
Function	Automatic Control
Certification	RoHS, CCC, ISO: 9001, CE
Condition	New
Customized	Non-Customized
Material	ABS
Transport Package	1PC in Small Box
Trademark	ANN
Origin	China
Production Capacity	50000

Packaging & Delivery

Package Size 20.00cm * 15.00cm * 10.00cm Package Gross Weight 0.500kg Lead Time 3 days (1 - 1 Pieces)
5 days (2 - 10 Pieces)
15 days (11 - 100 Pieces)
To be negotiated ( > 100 Pieces)

Product Description

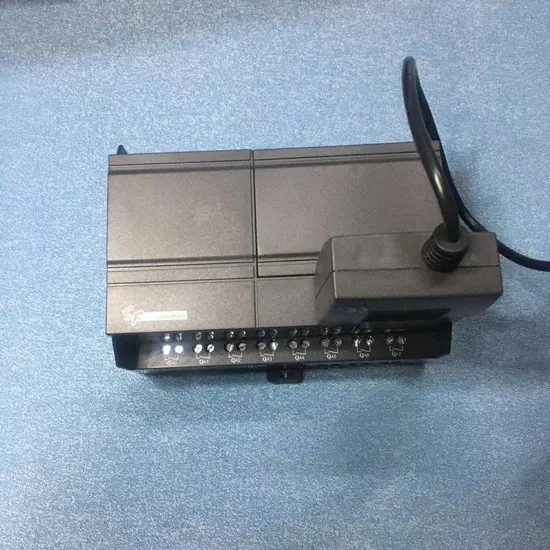

SR-20ETD

12-24VDC 12 points DC input , 8 points transistor output ,20 points extended module (NPN)

	This intelligent controller, adopting function block programming, having large programming capacity, being f reely
	fprogrammed according to different users and different fields, can run at your desired time table and the RTC
	accuracy can reach second and makes your time control more accurate. And up to 128 time sessions can
	be set , especially suitable for time-control system.
	Safety password function makes your program absolutely safe. Before writing program, password can be set. And only
	after entering the correct password, can the program be modified.

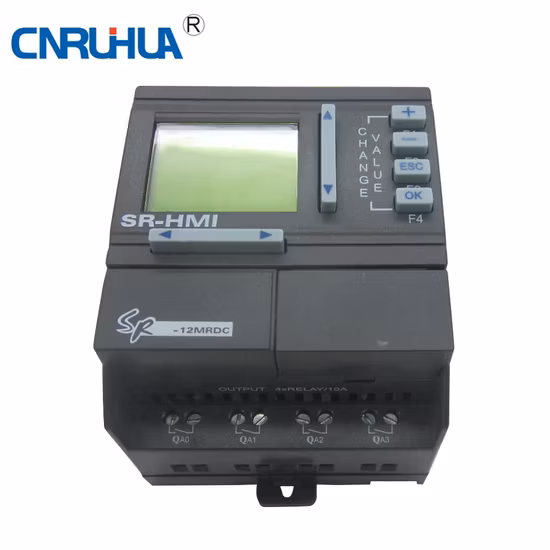

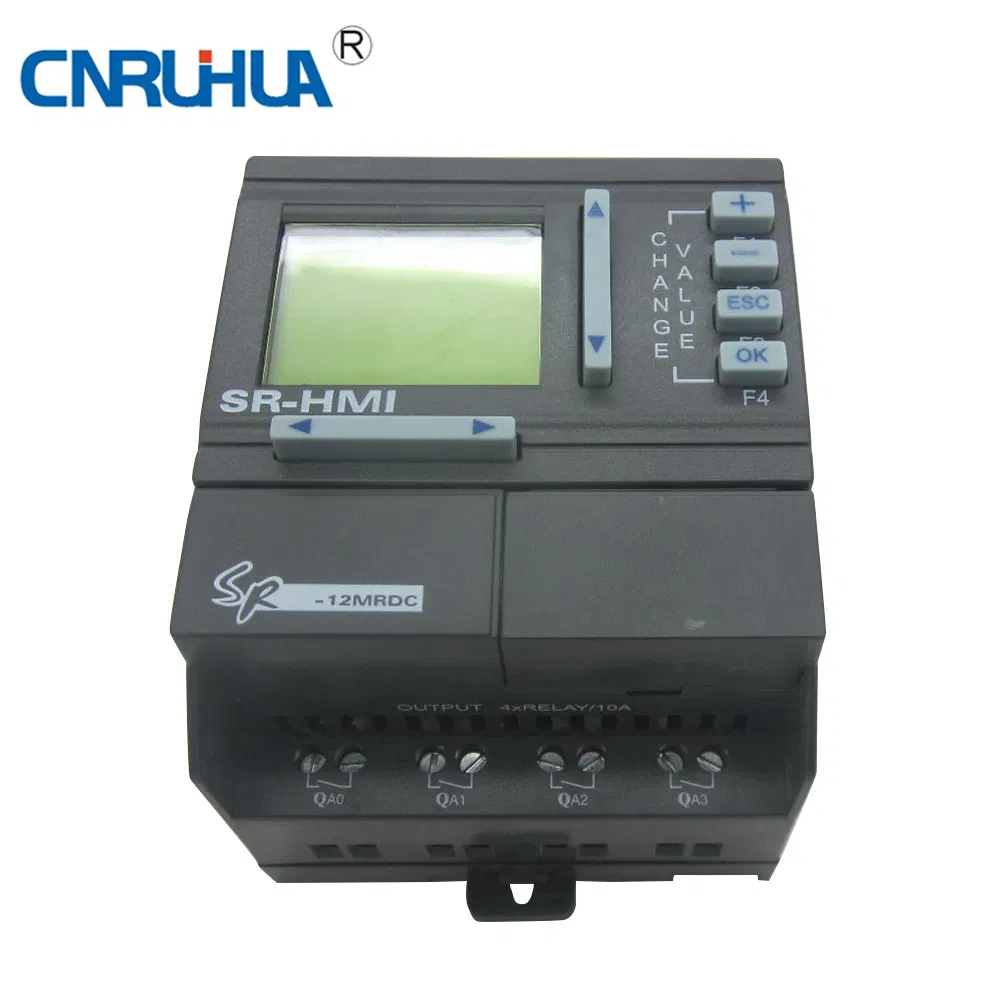

	It is equipped with a removable, convenient and programmable LCD, providing 64 friendly human-machine interfaces,
	32 virtual keys, having the function to display the alarming message and parameter and to modify the parameter.
	When needed, it can be installed. And when not needed, it can be removed and replaced with an ordinary front panel.
	Thus the cost will be greatly reduced.
	The input can receive not only the digital input but also the analogue input to perform the control and . transmission of
	fthe temperature, moisture, pressure, flow level unit and so on.

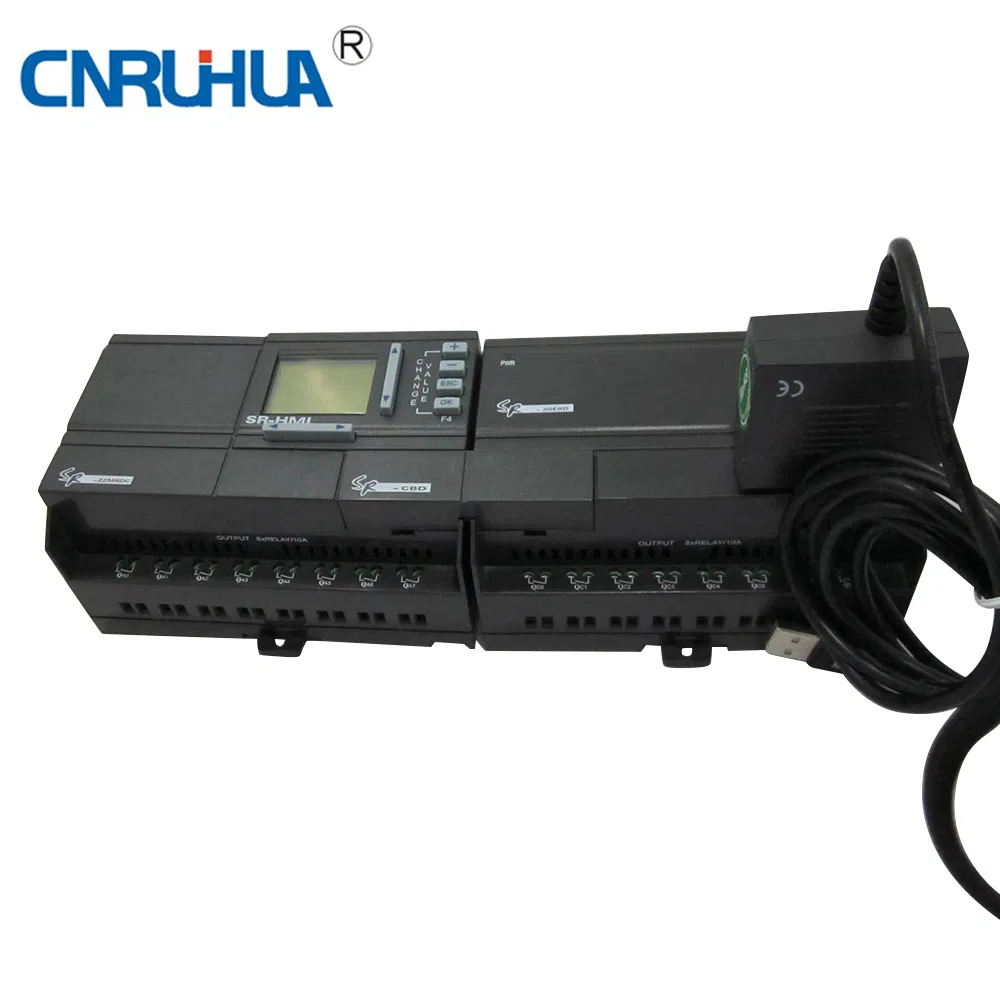

	It has well-featured and compact design with 14 point input and 8 point output. Equipped with expansion module, it can
	be expanded into 82 I/O better ,and to MAX 122I/O.It can be connected with telephone voice module and remote control
	module to perform the notification and alarming function. And the connection between the host and the module can
	be Bridge SR-CBA or flexible connection SR-ECBA.
	The machine has short-circuit protection (internal) and relay output protection (external) function, which makes your
	usage safer and easier.

Power supply
Power	DC12V-24V
Input parameters:
Input No	12(X0-A7,Y0-Y3)
Digital input	12(X0-A7,Y0-Y3)
Analogue input	None
Power range	DC0-24V
Input signal0	DC0-5V
Input signal1	DC10-24V
Output parameters:
Output No	8(QX0-QX7)
Output type	Transistor (NPN)output
Output voltage	DC0-24V
Output current	2A
Environment temperature:
Running temperature	-20ºC~70ºC
Storage/shipment	-40ºC~70ºC
Switch frequency:
Mechanism	10Hz
Resistor/light load	2Hz
Sensitive load	0.5Hz
Other parameters:
Clock buffer memory at 25ºC	80h
RTC accuracy	Max±5s/day
Protection	IP20
Emission on line	EN55011(B)
The main frequency range	47-63Hz
Function block No	128
Program storage capacity	64K
Isolation intensity	IEC1131
