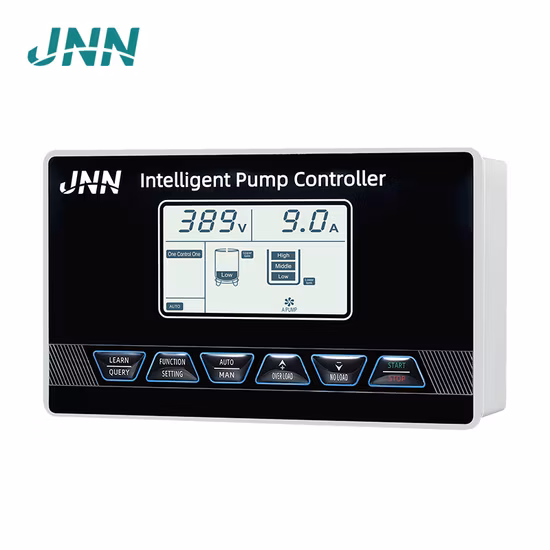

3 Phase Water Pump Programmable Logic Controller with LCD Display

Basic Info.

Model NO.	D2F
Condition	New
Customized	Customized
Material	ABS
Pump Control	Double Pump
Fault Check	Latest 10 Failures
Display	LCD Display
Pump Power	0.75-11kw
Input Voltage	380VAC
Phase	3 Phase
Transport Package	Pieces
Specification	170*120*50mm
Trademark	Pump Sergeant
Origin	China
HS Code	90328990

Product Description

1.Description of water Pump Controller PLC
D2F series water pump controller PLC mainly designed for the 3-phase single and double pump control system(water pump control panel).suitable for the pump power 0.75KW-30KW .

2.Typical Applications for water pump Control PLC

• Agricultural irrigation/ pumping
• Waste water treatment
• Pressure Booster Systems
• Drainage System
• Flood Control
• Water Tanks/Wells
• Cooling Towers
• Fishing Boat

Specifications for the water pump controller PLC

Type	D2F
Model	D2F-11KW	D2F-30KW
Rated Power	0.75-11KW	11-18.5KW
Rated Input Voltage	380VAC
Qty.of Controlled Pump	Double pump
Display	LCD display
Signal Transmission Mode	Level float switch Level probe Pressure switch Electric contact pressure gauge
Water Level Indication	High/Middle/Low
Max.Control Distance	≤2000m without strong electric and electromagnetic fields
Over/under-voltage Range	304-456V(adjustable)
Protections	Pump stalled protectionDry run protectionOver-load protectionUnder-voltage protectionOver-voltage protectionOpen phase protectionShort circuit protection
Main Functions	Time settingFault detectionAnti-rust inspectionAutomatic restart after power recovery
Working temperatureWorking humidityDegree of protectionInstall position	-25ºC-- +55ºC20%--90%RH, no drips concretedIP22Wall mounting

1)How to convert HP into KW ?The conversion formula as :1HP=0.74KWfor example: 3PH=3x0.74KW/PH=2.22KW.2)How to choose the power of your pump controller?Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,Pump controller should choose 7.5KW.For Submersible pumps which used in the deep well,please check with us first .3)Can I have the samples of your pump controller ?Yes, we can send you the pump controller samples for your testing .4)Can you provide OEM or ODM ?Yes,we can make the ordes according to your detailed request.5)what is your delivery time?It takes 3-5 days for sample orders,and 15-20 days for orders.
